Specifications

Key features

• Very High Sensitivity
• Excellent discrimination of personal metal effects
• Fully compliant with, and exceeding, the NIJ-0601.02 Standard
• Very high throughput in high security public screening checkpoints
• Met-Identity technology identifies and signals the metal type in real time
• Exceptional Immunity to external interferences
• High precision bidirectional counter with automatic rescreening compensation
• Random alarm capability programmable from 0% to 100%
• Chip Card capability for fast, simple, and secure programming
• Standard Interfaces: RS-232, Bluetooth, Infrared. Other available interfaces: Wi-Fi, Ethernet, USB

Quality

• Continuous self diagnostic system
• Proven reliability
• No periodic re-calibration and preventive maintenance required
• No scheduled maintenance
• Fully digital design

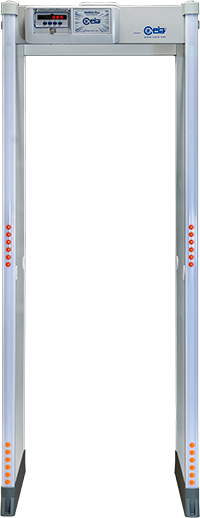

Walk-through gate structure

• State-of-the-art, robust and washable panels
• Protected against aging, weather and wear

Central control unit

• Ergonomic and robust design
• High visibility alphanumeric display and programming keyboard
• Made of advanced plastics or stainless steel and anti-vandalism construction (option)
• Access to the front panel protected by hardware key and 3 levels of passwords

Alarm signaling

• Visual signals
  • Multi-zone display bar for “height on person” localization
  • 4 light bars with selectable entry/exit and pacing indication
  • Green and red metering signals proportional to the mass of the detected target
• Audio signals
  • 10 selectable continuous and pulsed tone plus 34 special tones
  • 10 selectable sound intensities ranging from 0 to 90 dbA at 1m

Type of signaling

• Visual: Fixed or proportional to the mass in transit - visible from 6m under lighting of 4000lux
• Visual zone indication: 20 x4 distinct zones (20x2 entry side and 20x2 exit side)

Programming

• Up to 50 built-in security programs (up to 30 International Standards, up to 20 Customizable Levels)
• Remote via RS-232, Infrared Remote Control Unit, Bluetoothtm or Ethernet 10/100 base T (option) interface
• Security level
  • International Standard (IS) command
  • Chip card
• Local by Control Unit alphanumeric display and keyboard
• Programming and chip-card access protected by user and super-user passwords

Operational features

• Quick reset time as short as 0.2 seconds for high throughput rate
• Very high detection speed (up to 50 ft/sec.)
• Built-in operational and technical functional verifi cation
• One-touch key reading of inbound, outbound and Security Level Data

Installation data

• Automatic synchronisation between two or more metal detectors with distance as close as 12” without the use of external cables
• Built-in floor sensitivity adjustment function
• Automatic Installation function (OTS)

Environmental data

• Power supply: 100…240V~ -10/+15%, 47…63Hz, 40 VA max
• Operating temperature: -20°C to +70°C (-37°C to +70°C upon request)
• Storage temperature: -37°C to +70°C
• Relative humidity: 0 to 95% (without condensation)

Certification and compliance

• Complies with the applicable Standards for Law Enforcement and Correctional Facilities
• Fully compliant with the NIJ-0601.02 Standard requirements
• Compliant with and certified to the applicable Standards for Enhanced Metal Detectors (EMD)
• Compliant with the applicable electromagnetic Standards on Human Exposure and Pacemaker Safety
• Compliant with applicable International Standards for electrical safety and EMC
• Harmless to magnetic media (CD, tapes, etc.)
